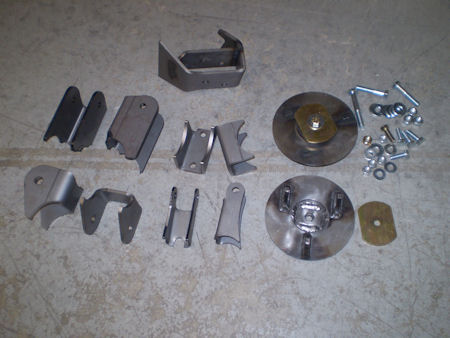

TJ Ford 8.8 Axle Swap Bracket Kit
	Quantity in Basket: None Code: IR-TF88BK Price: $224.99
What spring pad offset do you need?: O.E.M. offset 1" offset
Quantity:
Doing an 8.8 swap has never been easier! With this complete weld on bracket kit, you will have everything you need to set up your Ford 8.8 as though it were a factory option on your TJ! This is an upgrade you can't afford to pass up. You can find a used 8.8 at your local salvage yard for cheap and there are tons of aftermarket parts available to upgrade it even more. You can even find 8.8's with disc brakes as an additional upgrade if you have drums! For anyone looking for a stout rear end to replace their weak Dana 35, this should be your first choice! We made many improvements over the factory TJ brackets that make this kit a "no brainer" upgrade. Product Features 1/4" and 3/16" CNC laser cut and break bent parts Two separate track bar mounting holes: 1 for stock location and 1 higher up for better geometry with taller lift heights Spring perches for optimum spring location with nearly any control arm length (option for .6" spring offset from axle tube centerline like factory or 1.6" offset for custom applications.) Heavy duty spring retainer holds coil in place on the axle Gives approximately 1/2" lift over stock (including the 8.8 tube diameter) All required hardware is included Extremely detailed installation instructions included Here's an email we received regarding this kit: Iron Rock Off Road, Hey, I just wanted to let you know I got the bracket kit installed over the weekend. It could not have gone any better. Your instructions were so easy to follow that the only concern was my welding ability. The pictures were invaluable for referencing. All in all, this kit is well worth the money.....especially with the instructions and measurements provided. Thanks for putting out a great product! Wes H., Kansas
