CODE: 10134 TJ Rubicon 44 Inner Axle Sleeve Kit

Improve the strength of your TJ Dana 44 so it holds up to the abuse you intend to put it through. These internal sleeves are an excellent way to produce huge strength improvement without a huge price tag.

Kit Features

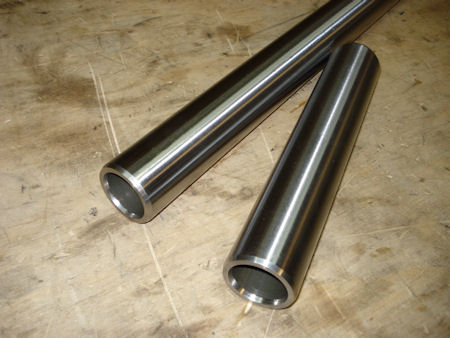

2" x 1/4" wall D.O.M. tubing
Machined outer surface for a nice, tight fit
Adds tons of strength to the front axle tubes.
No loss of ground clearance
Less chance of the housing twisting


A Dana 44 axle tube is 2.5" x 1/4" wall. While the material itself is strong, the way we use our vehicles can compromise that strength.	Our Inner Axle Sleeve Kit doubles the thickness of your Dana 44 tubes to a full 1/2"!! Now thats a tube that you can have confidence in.

Available now for XJ, ZJ, TJ, YJ, MJ, WJ and JK!!

Axle "C" trusses are now available to compliment this smart strength upgrade.

Welding is required for installation of this kit.

Installation instructions

CLICK ON PHOTOS BELOW FOR LARGER IMAGES
